Beschrijving

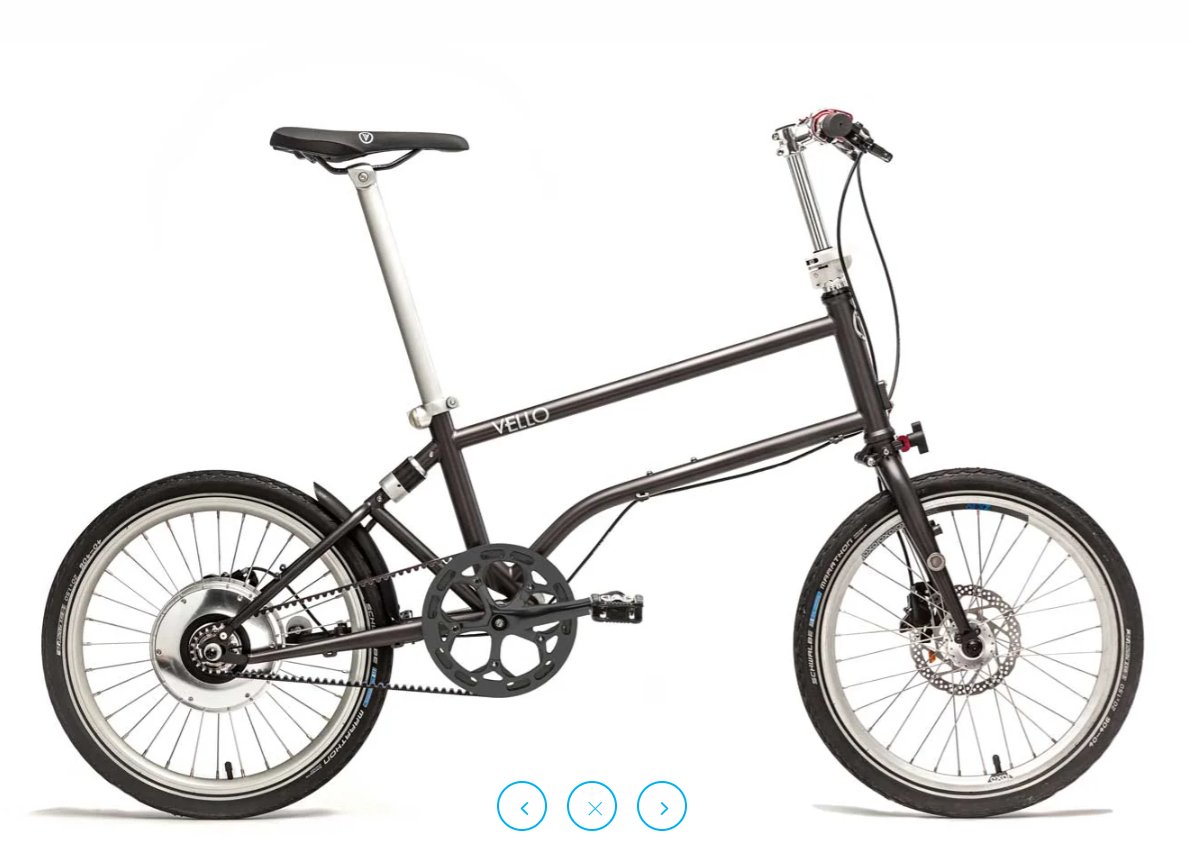

Vello Bike Automatic Speed Drive 2026
Color: Anthracite
Frame: Multisize, unisex, chrome-molybdenum steel frame with shock absorber and elastomer magnet folding mechanism
Top Tube Length (c-c): 580mm
Seat Angle: 73°
Head Angle: 73°
Bottom Bracket Drop: -40mm
Crank Arm Length: 170mm
Handlebars & Grips: VELLO-designed foldable flat handlebars with ergonomic grips
Saddle: Selle Royal with Foam Matrix™ padding
Seat Post: Satori aluminum, 30.9mm x 500mm
Stem: Fully adjustable (VELLO BIKE design)
Rear Derailleur: Optional: Schlumpf Speed Drive (gear ratio 1:1.65) or Schlumpf Mountain Drive (reduction ratio 2.5:1)
Drivetrain System: Belt Drive; Gates Carbon Belt Drive
Braking System: VELLO-designed hydraulic disc brakes, 160mm rotors
Tires: 20″ Schwalbe Marathon Original 40-406
Unfolding (gear ratio x tire circumference):
Standard: 4.46m
Speed Drive: 4.46m – 7.36m
Mountain Drive: 1.78m – 4.46m
Pedals: Lightweight, full-aluminum folding pedals
Kickstand: Robust design with plastic end foot for enhanced support
Bell: Lightweight and elegant
Weight: Approx. 13.9 kg (without pedals), +/- 5%
(With Schlumpf variant: +0.9 kg)
Folded Dimensions: H: 57 cm x L: 79 cm x W: 29 cm
(H: 22 in x L: 31 in x W: 11 in)
Warranty: Lifetime warranty on the frame. Activate your warranty as the first owner simply by registering online within 6 weeks of purchase. 2 years on motor and battery.
Maximum Permissible Total Weight: 125 kg / 276 lbs
ZEHUS ELECTRIC MOTOR SPECIFICATIONS
Zehus Motor Power: 250 W / Max. 40 Nm
Speed: Up to 25 km/h with motor assistance, or up to 40 km/h manually with the optional Schlumpf Speed Drive
Range: Up to 70 km in hybrid mode
Bluetooth 5.1 Connectivity: Connect via smartphone with the free Zehus app, or use an optional wireless remote control
Sensors: Four sensors, including automatic electronic gear shift, tilt sensor, and 100 Hz control for enhanced performance
Integrated Battery: 200 Wh with Smart BMS for efficient battery management
Motor Type: Highly efficient BLDC motor with K.E.R.S. (Kinetic Energy Recovery System). The motor recovers energy during backward pedaling, switching to regenerative braking mode to recharge the battery
Motor Battery Sensors: All-in-one Generation 2 motor with no external wiring on the frame
Charging Time: Self-charging via K.E.R.S. technology, or fully charged in just 3 hours using the included charger
Water Protection: IPX5-rated for water resistance
Battery Life: Up to 1,000 charging cycles
Motor Weight: 3.2 kg
